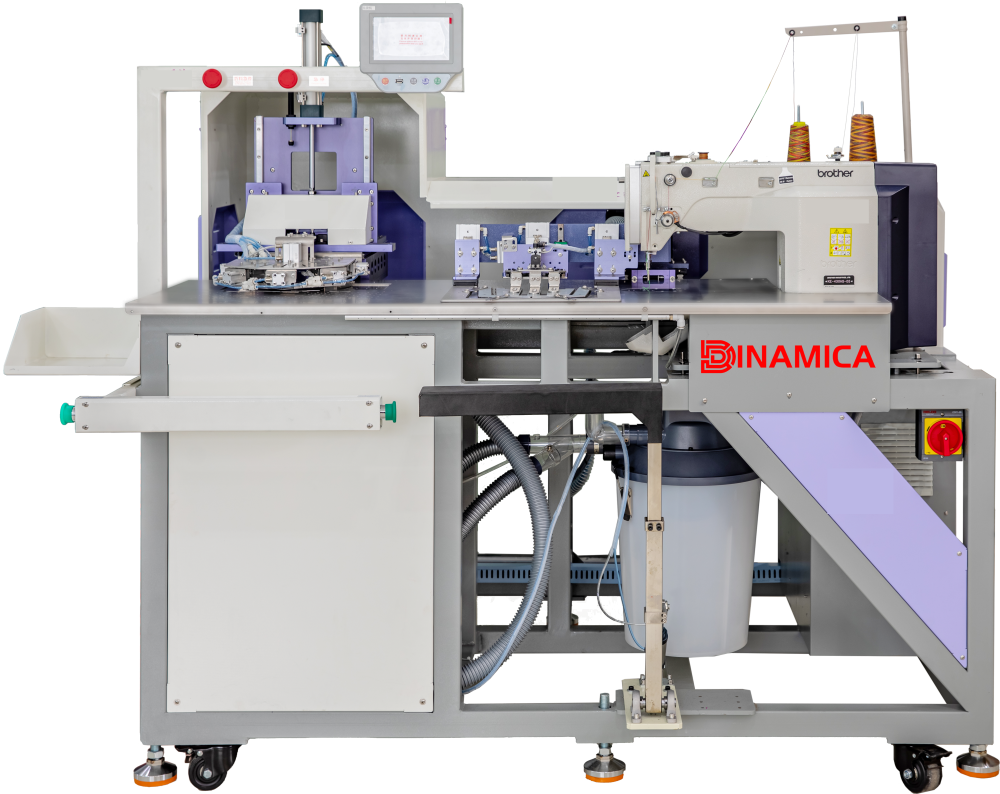

Above picture. attach with brother BAS-311H pattern sewer Above picture. attach with juki DDL-8000A 1-needle lock stitch SW-02 of automatic pocket setter machine, balanced and reasonable structure, smooth linear work, exquisite production.
Applicable scope balanced and reasonable structure,smooth linear work,exquisiteproduction
Buying points We can choose the most suitable head according to the requirements of different processes and the thickness of different fabrics,including:
1. AIsew SN series 2828 pattern sewer head and it is specially recommended£»
2. Japanese Brother series BAS-311H pattern sewer, 430HS bartecking machine head, 730 lock stitch head;
3. Japanese JUK 210EN series pattern sewer head and DDL-8000Alock stitch;
4. Japanese Mitsubishi series G type 1010,2516 pattern sewer;Computer program control. servo + pneumatic drive, easy operation, strong stability. Dependingon the size of the pocket,thenumber of stitches can be 4-6 per minute.
Technical parameter:
| Machine size |
170mm*145mm*165mm |
| Package size |
190mm*165mm*185mm |
| Weight |
440kg/480kg |
| G.W. |
540kg/580kg |
| Power & consumption |
220V 1P 50/60Hz, 1.25kw(direct drive) |
| Air pressure |
5 Bar(Low air-pressure alert: ) |
| Max pocket area |
280mm*280mm |
| Min pocket area |
45mm*45mm |
| Max speed |
3000RPM |
| Stitch length |
0.1-12.7mm |
| Pattern quantity in memory |
999+USB memory |
|
