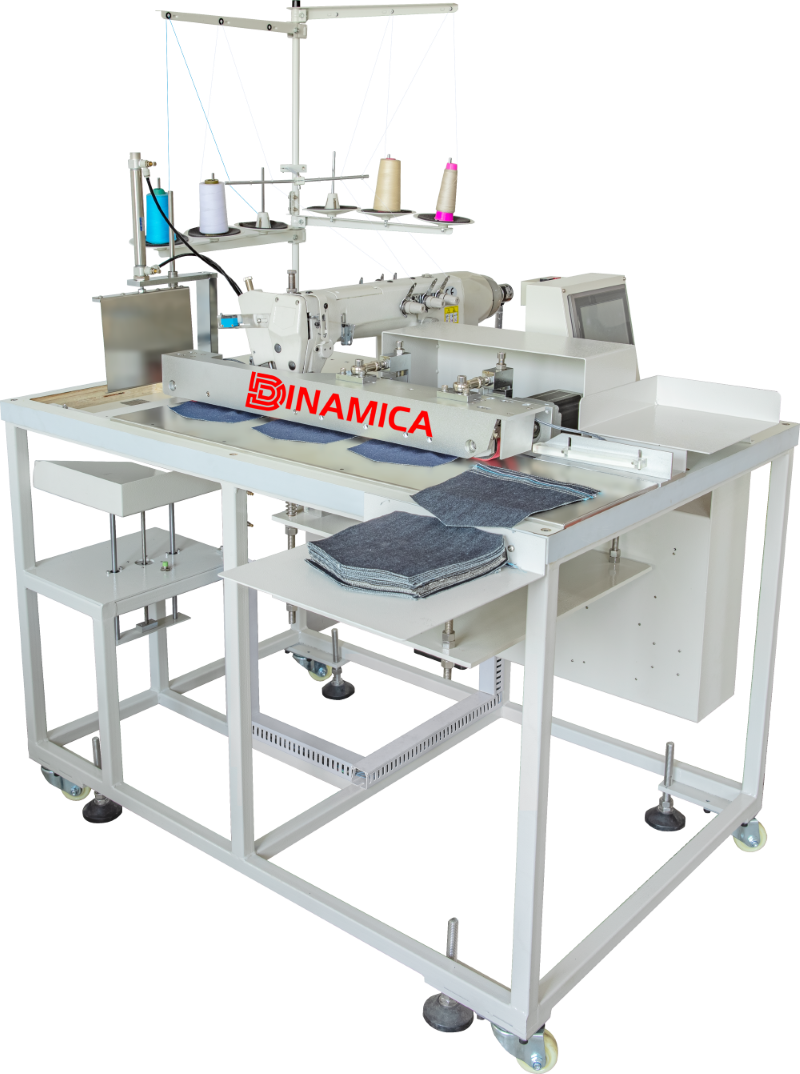

Automatic pocket hemming machine is three needle chain stitch (support single needle,double needle), the main features are as follows:
1.With the support of our unique technology, the chain bottom line can be adjusted to a smooth and smooth effect, no bumps,no scratching hands, and it is not easy to damage the yarn during the washing process;
2.Adjustable folder, adjust the width base on demand and it can make clean edge and burr edge;
3.Caterpillar feeding structure, from fabric enter into the work area to receive, complete protection of cutting stability, the finished product will not twist, stretch, deformation, to ensure that the cutting into the next pocket process neat and stable,more conducive to make beautiful neat pocket;
4.Standard stitch length is 1/4 ", and 5/16 ", 3/8 ", 1/2 " for optional.
5.The machine automatically starts when the electric eye senses the cloth, accurately cuts the line, collects the material, the unique electric eye technology adapts to all kinds color of cloth.
Technical parameter:
| Machine size |
1200mm*900mm*1000mm(L*W*H) |
| Packing size |
1350mm*1100mm*1250mm(L*W*H) |
| Weight |
110kg |
| G.W. |
200kg |
| Power &consumption |
220V50/60Hz |
| Air pressure |
5 Bar(Low air-pressure alert:) |
| Maximum sewing speed |
4000rpm |
| Machine sewing length |
0.9mm-4mm |
