MODEL£ºSN-SW3
Applicable scope The head is isew SN5028 pattern sewer. The sewing range reaches 500mm*280mm, it is specially designed for kangaroo pocket,apron,military uniform and other large size pockets,large surface cutting pieces. The whole machine is driven by servo system, flexible template plate.

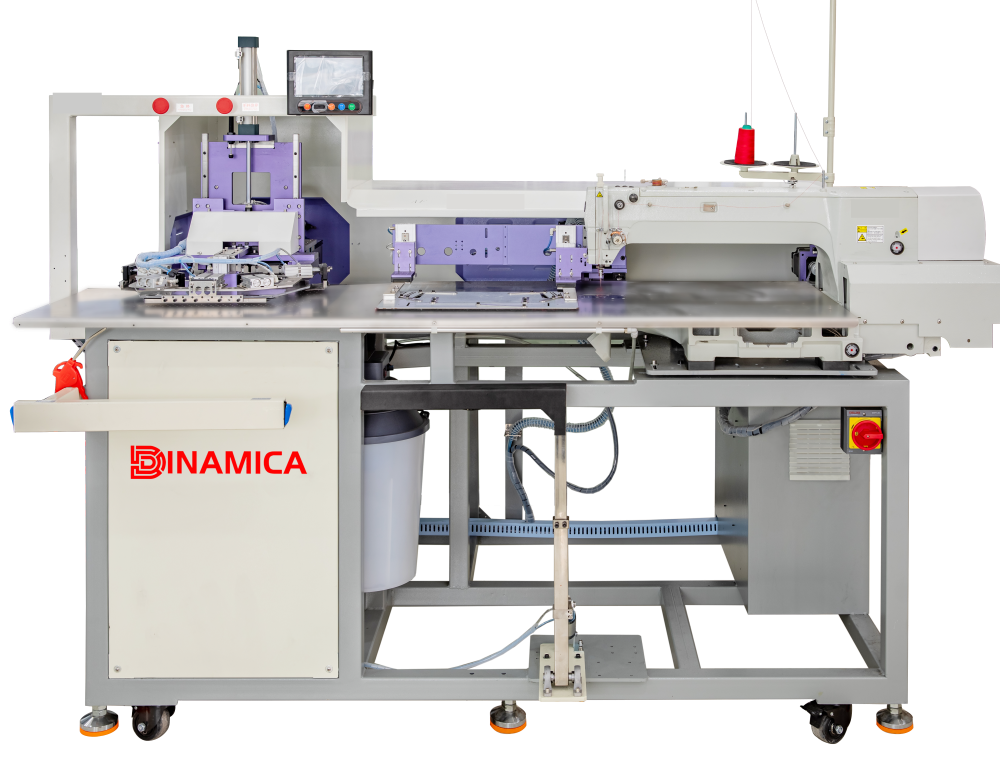

Buying points 1.SN-SW3 is the latest big working size,high precision,high quality automatic kangaroo pocket setter machine.
2.When changing styles in different seasons, ordinary pockets can also be sewn. It brings better adaptability to customers.
3.The production capicity is 4 pcs per minute for normal pocket.3 pcs for double line kangaroo pocket and 3-4 pcs for sinlge line kangaroo pocket. It can sew for barteck stitch as well.
| Machine Size |
2050mm*155mm*155mm |
| Package Size |
2200mm*165mm*165mm |
| Weight |
530kg |
| G.W. |
650kg |
| Power & consumption |
220V 1P 50/60Hz, 1.25kw(direct drive) |
| Air pressure |
5 Bar(Low air-pressure alert: ) |
| Max pocket area |
500mm*280mm |
| Min pocket area |
45mm*45mm |
| Max speed |
3000RPM |
| Stitch length |
0.1-12.7mm |
| Pattern quantity in memory |
999+USB memory |
| thread breakage detect |
Bottom line memory |
|
