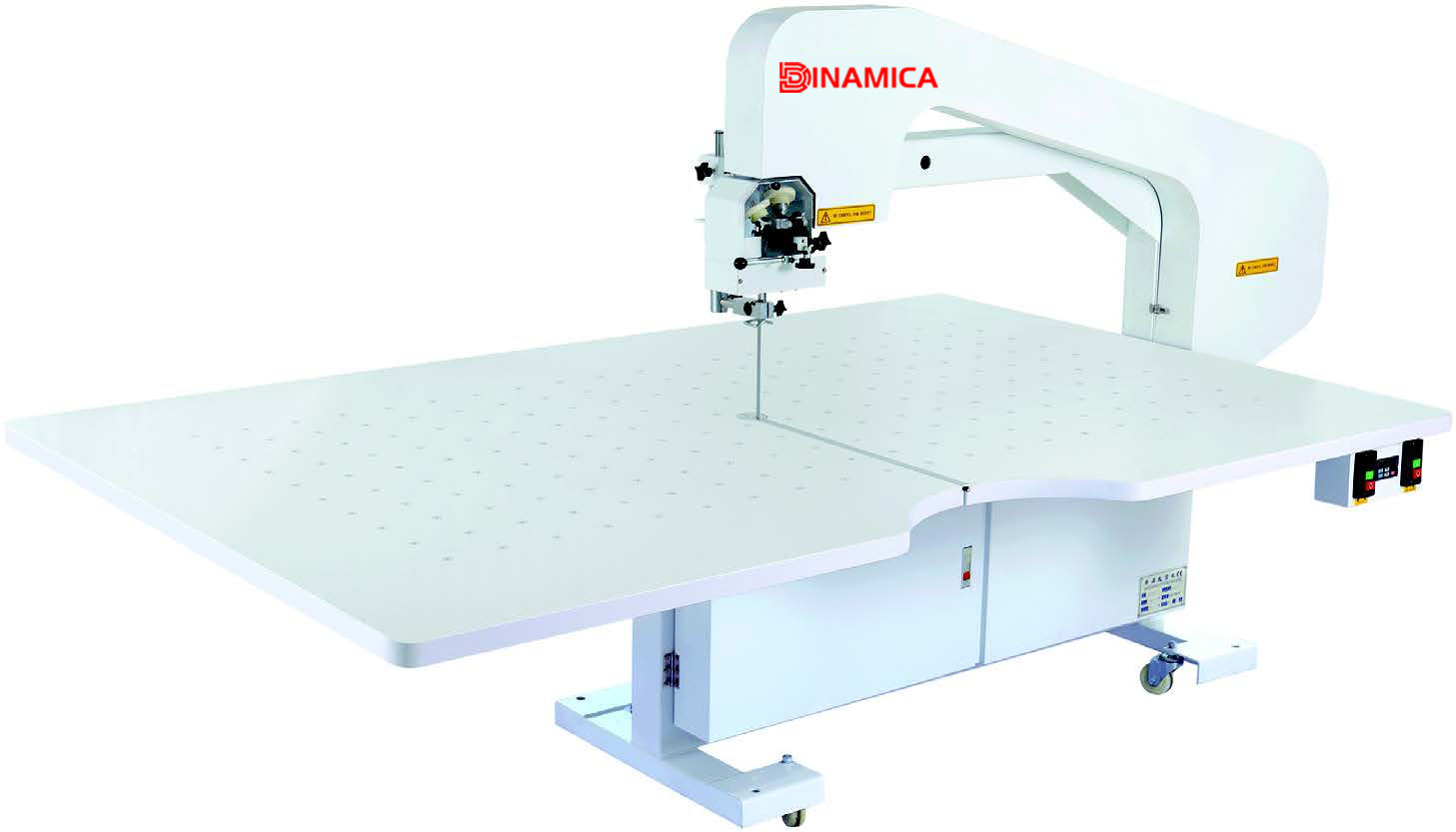

Band knife machine

MODEL:SN-BK1200-A/B
A: Normal type
B: Frequency controls (optional )
S: Safety device (optional )

1.Regulative cutting speed, the user can adjust various cutting speeds according to different fabrics.

2.lt is attached with a special air-floated blowing advice toccatina excess resistance formed between the cutting sheet weight and cutting table. It makes easy move for cutting sheet and more precise cutting for small cutting sheets.

3.Extremely easy cutter removal.

4.lt is attached with a grinding device to ensure constant sharp of the cutter.

5.Could be choose the belt safety protection device.

Technical parameter:

 Effective width  right tool 1200mm
 Cutting height 200mm
 Bonding peressure 15Kpa
 Cutting motor power 750W
 Blower motor power 550W
 Linear velocity of tool 11.0;12.2;13.3m/min
 Tool specification 0.45*10*4650mm
 V belt specification  A-1499mm
 Worktable specification 1500*2400mm
 Power suppley 220V/1PH 380V/3PH 50HZ
 Weight 338kg
 Dimension 2862*1500*1570mm
 Packing size 2500*745*1750mm
