Products

Automatic belt loop attaching
   ¡¾Previous¡¿ ¡¾Next¡¿

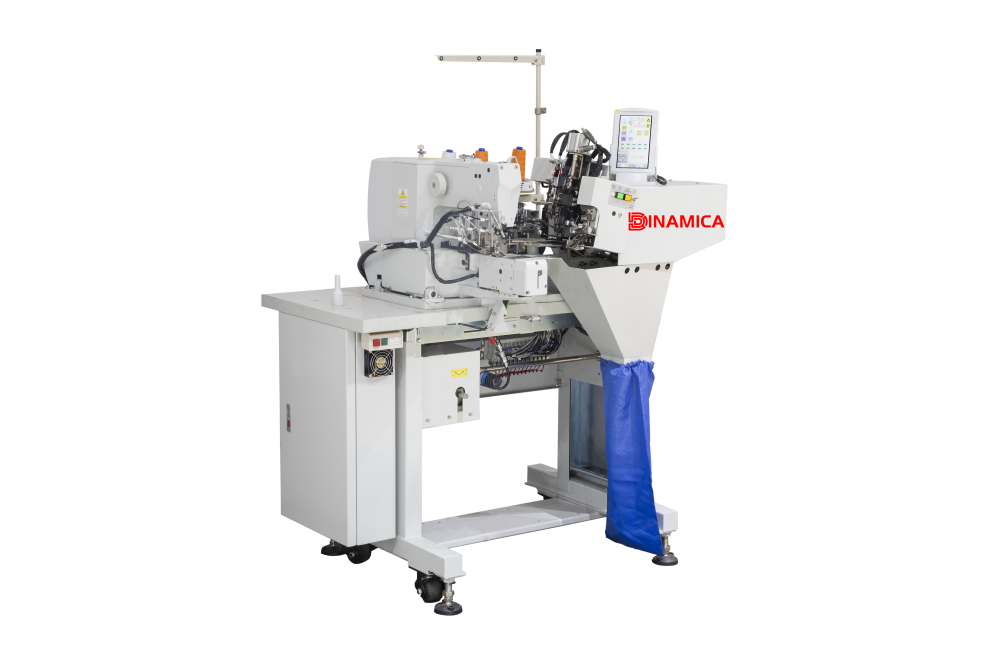

Automatic belt loop attaching machine
MODEL£ºSN-SW6




Buying points
SN-SW6 automatic belt loop attaching machine is used for belt loop attaching of jeans and casual   pants. We connect the connected pants belt loop into the machine, and the machine can cut, fold and double needle sewing in one time.The main features of the machine are as follows:

1, the machine with electronic induction, can actively filter the port of the pants loop;

2. The machine ensures that each belt loop is standard, uniform and neat;

3. There is no need for skilled workers, and the production capacity is about 3000 pieces per day according to the calculation of 5 belt loop  per pair of pants.

Technical parameter:

Machine size 1100mm*1000mm*1240mm
Packing size 1200mm*1100mm*1440mm
 Weight 190kg
G.W. 270kg
Power & consumption 220V,50Hz,1.5kw
 Air pressure 5Bar
Maximum sewing speed 4000rpm
Machine sewing length 0.9mm-4mm
